General Introduction: Barium Fluoride(BaF2)
Hellma Materials Barium Fluoride is the material of choice for wide bandwidth applications covering the VIS, near-IR and mid-IR range. It is an optical crystal grown from highly purified synthetic raw material and features a superior internal transmittance (T > 99% @7μm) enabling advanced applications in thermal imaging, night vision and surveillance imaging using integrated VIS and IR detector channels. Low spectral dispersion makes BaF2 the preferred optical material for aberration and color correction.
Barium Fluoride is widely used in VIS/IR applications.
Products Name: Barium Fluoride(BaF2)
Alias: Barium Fluoride(BaF2), Barium Fluoride, Barium Fluoride VIS, Barium Fluoride IR, Hellma Barium Fluoride, Barium Fluoride Windows, Hellma BaF2, hellma BaF2, Barium Fluoride optical materials, BaF2 optical materials, etc.
Main Characteristics:
Same to Calcium Fluoride, Hellma Materials large size Barium Fluoride crystals does specifically meet the requirements of astronomical optical instrumentation, It has the following main characteristics:
1). Featuring a consistently high transmittance covering the full spectrum of ultraviolet, visible and infrared wavelengths.
2). Low spectral dispersion makes BaF2 the preferred optical materials for aberration and color correction.
3). Critical optical parameters including high refractive index homogeneity and low stress birefringence enable high performance optical designs for the full range from next generation ground-based extremely large telescopes (ELTs) to portable refractors for semi-professional use.
4).High resistance of BaF2 against Gamma radiation exposure proven by transmission testing makes these materials a superior choice also for space borne optical instruments.
Thermal Properties:
Mechanical Properties:
Optical Properties:
Main Applying Fields:
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Hellma Materials Barium Fluoride is the material of choice for wide bandwidth applications covering the VIS, near-IR and mid-IR range. It is an optical crystal grown from highly purified synthetic raw material and features a superior internal transmittance (T > 99% @7μm) enabling advanced applications in thermal imaging, night vision and surveillance imaging using integrated VIS and IR detector channels. Low spectral dispersion makes BaF2 the preferred optical material for aberration and color correction.
Barium Fluoride is widely used in VIS/IR applications.
Products Name: Barium Fluoride(BaF2)
Alias: Barium Fluoride(BaF2), Barium Fluoride, Barium Fluoride VIS, Barium Fluoride IR, Hellma Barium Fluoride, Barium Fluoride Windows, Hellma BaF2, hellma BaF2, Barium Fluoride optical materials, BaF2 optical materials, etc.
Main Characteristics:
Same to Calcium Fluoride, Hellma Materials large size Barium Fluoride crystals does specifically meet the requirements of astronomical optical instrumentation, It has the following main characteristics:
1). Featuring a consistently high transmittance covering the full spectrum of ultraviolet, visible and infrared wavelengths.
2). Low spectral dispersion makes BaF2 the preferred optical materials for aberration and color correction.
3). Critical optical parameters including high refractive index homogeneity and low stress birefringence enable high performance optical designs for the full range from next generation ground-based extremely large telescopes (ELTs) to portable refractors for semi-professional use.
4).High resistance of BaF2 against Gamma radiation exposure proven by transmission testing makes these materials a superior choice also for space borne optical instruments.
Thermal Properties:
| Items | Value |
| Melting Point(ºC) | 1386 |
| Specific heat capacity | 410 J / kg x K |
| Thermal conductivity@ 13ºC | 11.72 W/M.K |
|
Linear thermal expansion coefficient α(0 °C) (10-6/K) |
18.1 |
Mechanical Properties:
| Items | Value |
|
Young's Modulus, E (25 °C) (Modulus of Elasticity) |
53.07GPa |
|
Shear Modulus, G (Modulus of Rigidity) |
25.40GPa |
| Bulk Modulus, K @ 25 °C | 56.40GPa |
| Posssion's Ration u | 0.343 |
| Knoop Hardness HK | 82 |
| Mohs Hardness | 3.0 |
| Density (g/cm3) | 4.89 |

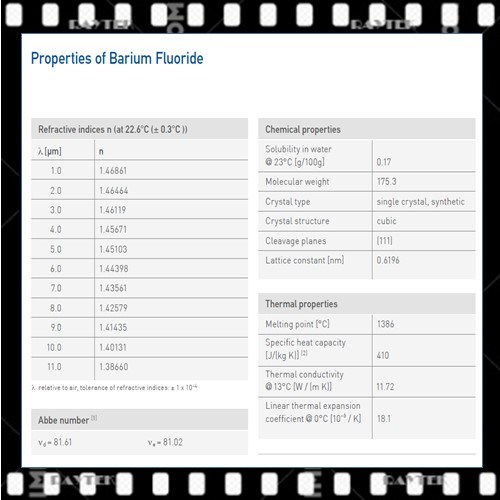

Optical Properties:
| Items | Value |
| Refractive indices | (at 22.6°C (± 0.3°C )) |
| 1.0 | 1.46861 |
| 2.0 | 1.46464 |
| 3.0 | 1.46119 |
| 4.0 | 1.45671 |
| 5.0 | 1.45103 |
| 6.0 | 1.44398 |
| 7.0 | 1.43561 |
| 8.0 | 1.42579 |
| 9.0 | 1.41435 |
| 10.0 | 1.40131 |
| 11.0 | 1.38660 |
| Abbe number |
Vd = 81.61 ; Ve = 81.02 |
| Thermal coefficient of refractive index | 18.41810-6 |
| Wavelength [μm] | dn/dT [K-1] @ 300K |
| 0.5 | -1.65 x 10-5 |
| 5.0 | -1.60 x 10-5 |
Main Applying Fields:
| Applying Fields: |
1).Advanced thermal imaging 2).Night vision equipment 3).Integrated visible and infrared detection channel imaging monitoring 4).Color correction optical instrument 5).Astronomical Instrumentation |
| ***** |
|
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
