Description

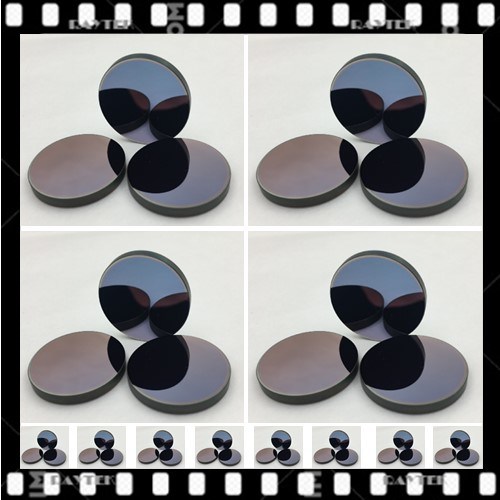

General Introduction: Raytek's Laser window mirror is to protect the scanning lens from splashes and other hazards in the workplace. It is usually made of zinc selenide, germanium and other materials with high infrared transmittance, and coated with antireflective film to reduce the loss caused by reflection.
Products Name:
Laser window/Laser protection window/Laser window plate/Laser lens
Alias:laser window, laser protection window, laser protective window, laser window plate, laser window sheet, laser window lens, laser lens, etc
Main Applying:
Main Highlights:
The standard antireflection film or Dar antireflection film is used in Raytek ZnSe protection window. Germanium protective window adopts our standard antireflection film or DLC coating. The surface hardness of DLC coating is very high, and it can be used in the worst industrial environment.
Main Technical Data:
Main Specification:
Substrate: CVD Znse
Unit:mm
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Products Name:
Laser window/Laser protection window/Laser window plate/Laser lens
Alias:laser window, laser protection window, laser protective window, laser window plate, laser window sheet, laser window lens, laser lens, etc
Main Applying:
| Applying 1 | Laser system |
| Applying 2 |
Laser marking machine,Laser engraving machine Laser cutting machine |
Main Highlights:
The standard antireflection film or Dar antireflection film is used in Raytek ZnSe protection window. Germanium protective window adopts our standard antireflection film or DLC coating. The surface hardness of DLC coating is very high, and it can be used in the worst industrial environment.
Main Technical Data:
| Technical Data | Description & Value |
| Substrate | ZnSe, Ge |
| Shape tolerance | + 0.0/-0.1mm |
| Thickness tolerance | ± 0.1mm |
| Face type | λ/ 4@632.8nm |
| Surface finish | 40-20 scratch-dig |
| Parallelism | Less than 1 arc min |
| Effective aperture | More than 90% |
| Chamfering | Less than 0.2*45° |
| Coating | Ar film, DLC film |
Main Specification:
Substrate: CVD Znse
Unit:mm
| No. | Substrate | Dia. | Edge thickness | - | Coating | Wavelength(um) |
| RAY-LWL01# | ZnSe | 100 | 5 | - | AR | 9.3 |
| RAY-LWL02# | ZnSe | 109 | 9.53 | - | AR | 9.3 |
| RAY-LWL03# | ZnSe | 111 | 5 | - | AR | 10.6 |
| RAY-LWL04# | ZnSe | 140 | 9.53 | - | AR | 10.6 |
| RAY-LWL05# | ZnSe | 140 | 9.53 | - | AR | 10.6 |
| RAY-LWL06# | Ge | 100 | 5 | - | DLC | 9.4 |
| RAY-LWL07# | Ge | 108 | 5 | - | DLC | 9.4 |
| RAY-LWL08# | Ge | 118 | 5 | - | DLC | 9.4 |
| RAY-LWL09# | Ge | 121 | 5 | - | DLC | 9.4 |
| Other size | Customize |
|
|
|
|
|
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
