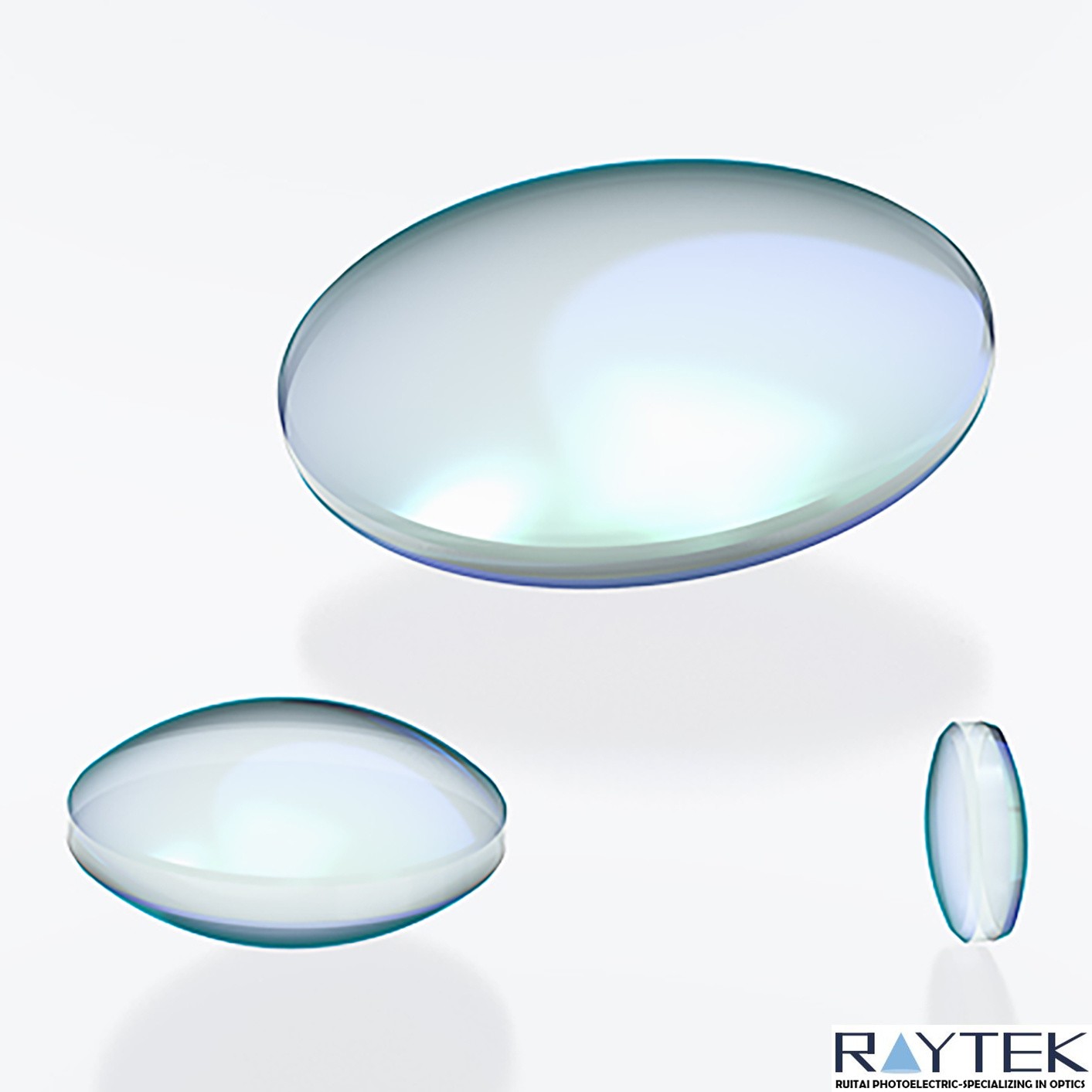

General Introduction: Biconvex lens is a kind of positive lens in the optical system mainly has the use of relay imaging (physical and real image) focusing divergent beams, convergent beams and other purposes. It is widely used in optical system applications such as beam expanding lenses, imaging lenses, and aggregation lenses.
Lens Substrates:
N-BK7
Coating Type:
Main Applying:
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Lens Substrates:
N-BK7
| Optional I: |
N-BK7 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent N-BK7 Made in China, C-laser own brands |
Coating Type:
| Coating Code: | Coating Type | Wavelength Range |
| AR.14 | Visible Multilayer | 430-700 nm |
| AR.16 | NIR Multilayer | 650-1000 nm |
| AR.18 | IR Multilayer | 1000-1550 nm |
| AR.33 | Laser Line V-Coat Multilayer | 1064 nm |
| - | Uncoated | - |
Main Applying:
| Applying Fields I: |
Relay imaging (physical and real) Focused divergent beam Converging beam Beam expander lens Imaging lens Focusing lens and other optical lens |
| Applying Fields II: |
Laser beam expansion Optical reader Observer Projection system |
| ***** |
|
Main Optical Tech Specification:
| Tech Data | Description |
| Lens Shape | Bi-Convex (Double Convex) |
| Material | N-BK7 |
| Surface Quality | 40-20 scratch-dig |
| Surface Flatness | λ/4 |
| Surface Accuracy, Irregularity | λ/4 |
| Surface Accuracy, Power | 1.5 λ |
| Centration | ≤3 arc min |
| Chamfers | 0-0.8 mm face width |
| Chamfers Angle Tolerance | 45° ±15°, typical |
| Focal Length Tolerance | ±1 % |
| Clear Aperture | ≥central 90% of diameter |
| Effective Focal Length(EFL) | From +6.4mm to +1000mm |
Popular Physical Size Specification:
| Size |
6.35mm/12.70mm/25.40mm/50.8mm,or Design & custom manufacturing as per demand. |
| Size Tolerance | +0/-0.1 mm |
| Thickness | - |
| Thickness Tolerance | - |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
