Precision N-Bk7 Right-Angle Prisms/Precision Right-Angle Prism/Optical Prism

Description

General Introduction: Raytek Precision n-bk7 prisms with λ/4 surface flatness and several antireflective coatings are used in the most demanding applications (such as interferometry or hologram in the visible and near-infrared range).
Through the total internal reflection (TIR), the right angle prism can be used as a 90 ° reflector or 180 ° hollow reflector. In addition to the reflection loss of incident and outgoing surfaces, TIR achieves 100% reflectivity based on a very wide wavelength range. If the incident angle exceeds the acceptable range of TIR, or if the environment does not allow the reflective surface to remain clean, the reflective surface shall be coated with protective aluminum in accordance with TIR requirements. The beveled edge can also be used as the first surface reflector. In this case, the outer coating of the black coating shall be removed with acetone
Products Name: Precision N-BK7 Right-Angle Prisms
Alias: N-BK7 right angle prism, Right angle prism, right angle optical prism, high precision right angle prism,N-BK7 prism, Precision N-BK7 right angle prism, etc
Prism Substrates:

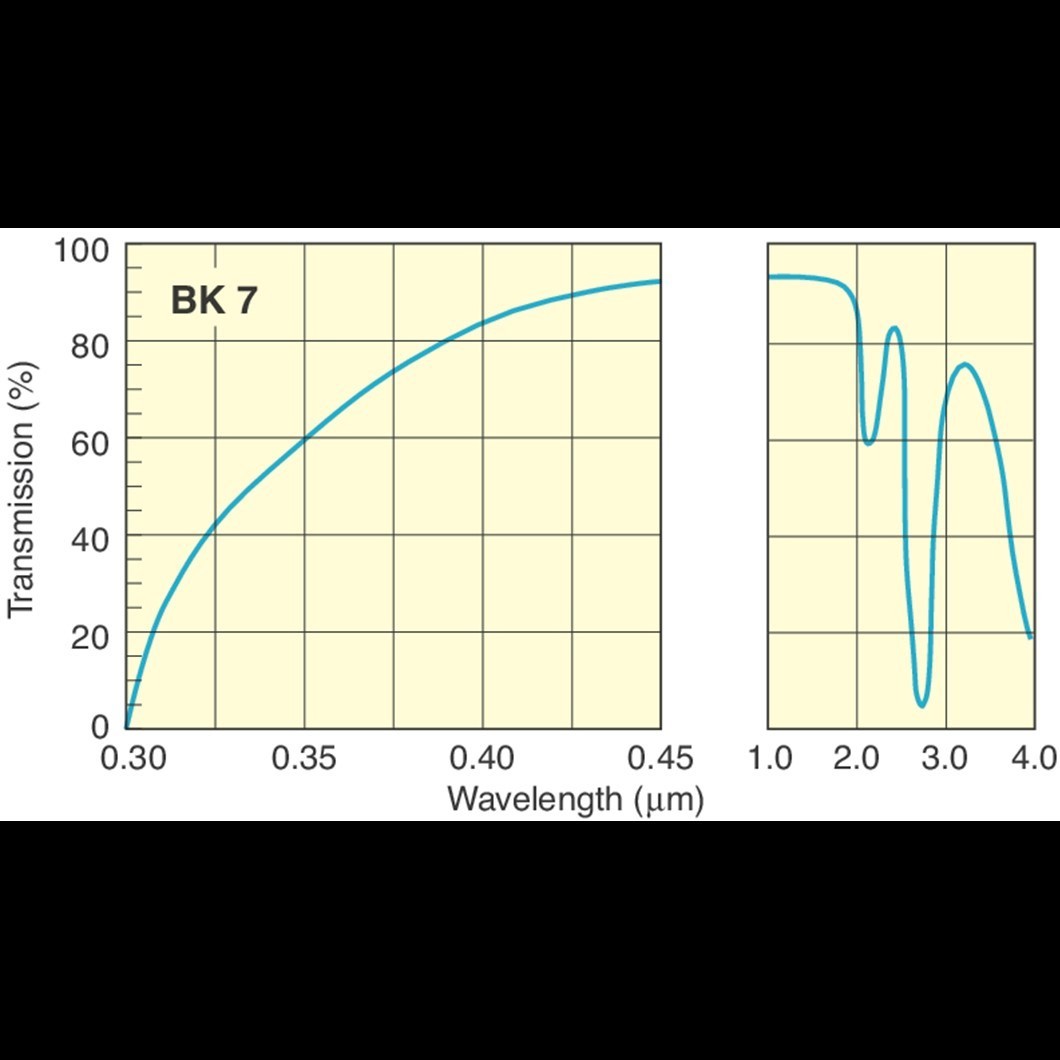

N-BK7

Coating:
Uncoated/Visible/NIR Multilaye/IR Multilayer/V-coat multilayer
Main Applying:
Products Highlights:
1).Precision n-bk7 substrate
2).20-10 scratch-dig
3).The surface flatness is λ/4
4).Four antireflection coatings can improve the transmittance
5).Very suitable for beam bending and back reflection
6).Dimensions range from 3.2 mm to 50 mm
7).Different grades materials for option.
8).High precision & high surface roughness;
9).Sizes can be customized as per the customers' request
10).Quick lead time and delivery time.
11).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
11).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:

Popular Physical Size Specification:

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
