Description

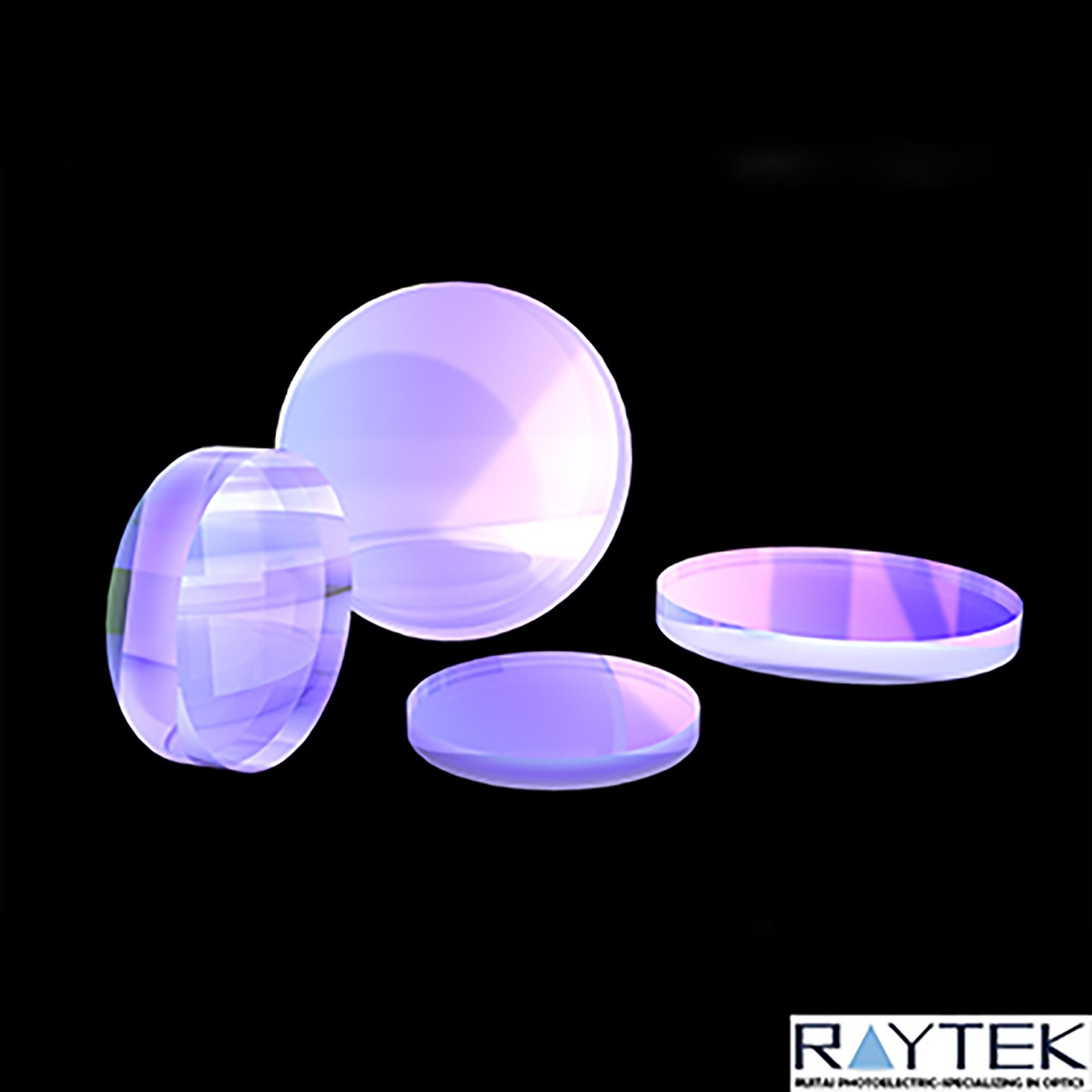

General Introduction: The leser window is usually in the front of the laser cutting and welding system, which is very important for the uninterrupted and stable operation of the laser system.
High energy laser resistant window can play a protective role, especially for the expensive precision optical components in the laser cutting head. The window is usually installed at the end, so that the debris, gas and spatter in processing are shielded by the window plate, so as to protect the focusing lens from damage. But once the film of the window piece is damaged, it must be replaced.
Our laser window can be individually packaged for easy and quick replacement. In the application of high power laser, our company has achieved excellent results. Window sheet uses high-quality substrate coating material, and our internal coating material mainly has the following two advantages:
1) Can prevent any backscattering and reflection in the process
2)The reflection loss of the window plate is reduced to the maximum and the process efficiency is improved
Excimer Grade UV Fused Silica
| Optional I: |
Excimer Grade UV Fused Silica from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Excimer Grade UV Fused Silica Made in China, C-laser own brands |
Main Applying:
| Applying Fields I: | Nd:YAG laser system |
| Applying Fields II: | The first, second, third and fourth harmonic of YAG laser |
| ***** |
|
Main Optical Tech Specification:
| Lens Shape | Optical Parallel Window |
Surface Accuracy Irregularity |
- |
| Lens Material | Excimer Grade UV Fused Silica | Diameter Tolerance | - |
| Coating | Laser Line V coating | Angle of incidence | 00 |
| Coating Type | - | Thickness | 3.0mm |
| Damage Threshold | - | Dia. Tolerance | +0/-0.10 mm |
| Thickness Tolerance | ±0.10 mm | Parallelism | 5 arc seconds |
| Surface Quality | 10-5cratch-dig | Clear Aperture | Central 90% of diameter |
| Surface Flatness | λ/10 @ 632.8nm | OEM/ODM | Accepted |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
