Description

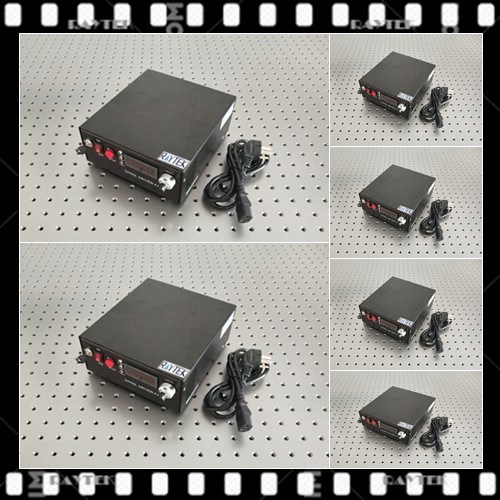

General Introduction:Raytek 355nm UV laser has the advantages of short wavelength, short pulse, excellent beam quality, high precision and high peak power. Therefore, the Raytek laser system has excellent application characteristics in the field of special material processing, which can significantly reduce the thermal effect on the surface of various materials and greatly improve the processing accuracy.
Raytek 355nm UV laser is mainly used for the marking and surface treatment of silicon wafer, ceramic chip, IC grain, various glass, TFT, LCD, plasma screen, key fine marking, glass surface marking, silicon chip marking, PCB processing, flat panel display production, electronic component fine tuning, solar cell material processing, textiles, polymer film and other materials.
Compared with green light and infrared light, Raytek ultraviolet laser has smaller thermal effect. As the laser wavelength becomes shorter, all kinds of materials have higher absorptivity, and even directly change the molecular chain structure. Ultraviolet laser has more obvious advantages in micro and nano level ultra-fine processing of materials sensitive to thermal effect. Raytek adopts sealed laser cavity design to prevent dust and condensation, completely avoiding two major reasons for damaging expensive optical devices, and ensuring the stable mass production of users in the industrial environment. Raytek's innovative design guarantees the long-term use of the conversion crystal. The small beam divergence angle makes UV have higher conversion efficiency. The power stability of Raytek laser is within 2%, which can ensure 24-hour continuous and stable operation. Its power consumption is usually less than 1000 watts, which is very energy-saving. Simple power connection scheme, plug and play, and reliable power failure protection function are provided.
Products Name:
355nm laser/355nm 1w laser/UV 355nm laser/UV 355nm 1w laser/Biological experimental laser/GaN laser 355nm 1w
Alias:355nm laser,355nm 1w laser,UV 355nm laser,UV 355nm 1w laser,Biological experimental laser,GaN laser 355nm 1w. GaN 355nm Laser, GaN Laer, 355nm-1W Laser, 355nm 200mw laser, 355nm 300mw laser, 355nm 500mw laser, 355nm 600mw laser, 355nm 800mw laser,355nm 3w laser,355nm 10mw laser, 355nm 30mw laser, 355nm 50mw laser, etc
Main Characters:
1).It has the advantages of short wavelength, short pulse, excellent beam quality, high precision and high peak power;
2).It has excellent application characteristics in the field of special material processing;
3).The thermal effect can be reduced significantly on the surface of various materials, and the application accuracy is greatly improved;
4).It can change the structure of molecular chain directly, and the ultraviolet laser has more obvious advantages when it is used in micro and nano level superfine processing for materials sensitive to thermal effect;
5).Widely used in UV CW semiconductor laser,fluorescence detection,biological experiment,excite GaN for experiments,etc fields
Main Technical Data:
Raytek 355nm UV laser is mainly used for the marking and surface treatment of silicon wafer, ceramic chip, IC grain, various glass, TFT, LCD, plasma screen, key fine marking, glass surface marking, silicon chip marking, PCB processing, flat panel display production, electronic component fine tuning, solar cell material processing, textiles, polymer film and other materials.
Compared with green light and infrared light, Raytek ultraviolet laser has smaller thermal effect. As the laser wavelength becomes shorter, all kinds of materials have higher absorptivity, and even directly change the molecular chain structure. Ultraviolet laser has more obvious advantages in micro and nano level ultra-fine processing of materials sensitive to thermal effect. Raytek adopts sealed laser cavity design to prevent dust and condensation, completely avoiding two major reasons for damaging expensive optical devices, and ensuring the stable mass production of users in the industrial environment. Raytek's innovative design guarantees the long-term use of the conversion crystal. The small beam divergence angle makes UV have higher conversion efficiency. The power stability of Raytek laser is within 2%, which can ensure 24-hour continuous and stable operation. Its power consumption is usually less than 1000 watts, which is very energy-saving. Simple power connection scheme, plug and play, and reliable power failure protection function are provided.
Products Name:
355nm laser/355nm 1w laser/UV 355nm laser/UV 355nm 1w laser/Biological experimental laser/GaN laser 355nm 1w
Alias:355nm laser,355nm 1w laser,UV 355nm laser,UV 355nm 1w laser,Biological experimental laser,GaN laser 355nm 1w. GaN 355nm Laser, GaN Laer, 355nm-1W Laser, 355nm 200mw laser, 355nm 300mw laser, 355nm 500mw laser, 355nm 600mw laser, 355nm 800mw laser,355nm 3w laser,355nm 10mw laser, 355nm 30mw laser, 355nm 50mw laser, etc
Main Characters:
1).It has the advantages of short wavelength, short pulse, excellent beam quality, high precision and high peak power;
2).It has excellent application characteristics in the field of special material processing;
3).The thermal effect can be reduced significantly on the surface of various materials, and the application accuracy is greatly improved;
4).It can change the structure of molecular chain directly, and the ultraviolet laser has more obvious advantages when it is used in micro and nano level superfine processing for materials sensitive to thermal effect;
5).Widely used in UV CW semiconductor laser,fluorescence detection,biological experiment,excite GaN for experiments,etc fields
Main Technical Data:
| Technical Data | Description & Value |
| Wavelength | 355nm+-1nm |
| Output Power | 10mw,30mw,50mw,100mw,200mw,300mw,500mw,600mw,800mw,1000mw(1w),2000mw(2w),3000mw(3w),5000mw(5w), or customized as per demand |
| Spatial Mode | Multi-mode, Spot Mode, or other modes |
| Working Mode | CW or Modulation |
| Beam Height | 25mm |
| Beam Size | 3*5mm |
| Beam Divergence(Full Angle) | 0.5*2.0mard |
| Fibercoupling Acceptable | >=25um NA0.22 |
| Fibercoupling Size |
200um,400um,800um,1000um, or customized as per demand |
| Power Stability | <3%-5% per 4 hrs |
| Working Current | <10A |
| Temperature Stabilizing Mode | TEC |
| Warm Up Time | <60 seconds |
| MTTF | 10,000hrs |
| Laser Head Dimension | 100(L)*40(W)*50(H)mm |
| Matching Powr Supply | 85-265V 50/60HZ Input |
| Modulation | 0-30khz Analog or TTL |
| Modulation Voltage | 0-5V |
| Work Temperature | -10-+40 Celsuis Degrees |
| Storage Temperature |
-20-+80 Celsuis Degree s |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
